360 Camera Pipeline

A seamless workflow, starting with mapping using panoramic cameras and concluding with the adding augmented reality (AR) content into your application.
Immersal Enterprise account needed.
Process with Mobile Device and BLK2GO is pretty simple and easy (image 0.1).
Normal pipeline (image: 0.1)
For 360 cameras there are few extra steps (image0.2). so here is a detailed guideline for the 360 pipeline.
360Camera Pipeline (image: 0.2)


  • Recommended 360 camera models: (08/2023) 1. Insta 360 ONE RS 1-inch sensor edition (resolution 6.5k, low-light optimisation) 2. Insta 360 X3 (resolution 5.7k) 3. GoPro Max (resolution 5.6k)
  • Photogrammetric software. e.g. Metashape (Pro license needed).
  • Scripts for converting and uploading to Immersal backend. We offer a sample script for Metashape.
  • MeshLab (optional, for Map Editing).

1. Immersal Mapping using Panoramic Cameras

Mapping the space

1.1 Basic Principles

The primary principle for mapping is ensuring the camera's position and orientation during mapping align with the expected pose where users will be localized. Hence, we must first determine the anticipated user location and the camera's front facing directional orientation for proper localization.

1.2 Route Planning (Urban Area)

In order to obtain the correct camera pose, we should plan the route during mapping, which must meet the following requirements:
  • Ensure that the mapping route has a loop. The size of the loop should be determined according to the actual environment. For example, if we want to cover the streets in the right picture, a loop can be made for each block, and each loop should align with the others (i.e., ensure that the camera can capture overlapping frames).
  • At the end, we need to return to the starting point.
Plan your route carefully

1.3 Route Planning (Open Area)

For open areas, such as squares, where there are no objects (e.g. buildings) surrounding it, we can walk freely. However, we still need to consider the basic principles, that is, we need to think about what routes the users might take for localization, where they might stop, and in what direction the camera should face. This will allow us to plan the best mapping route.
If there are some key objects or landscapes in the environment that need to be covered, such as a sculpture in the center square, we can do more mapping around it, but please note:
Try not to rotate the camera, and it's best to keep the camera's orientation constant, otherwise, it might cause a jelly effect, affecting mapping.
Ensure a uniform and slow walking speed, and do not suddenly stop or accelerate.
Mapping Out Door Area

1.4. Mapping options

Users can choose to conduct the mapping through either taking panoramic photos or shooting panoramic videos. The former generally results in a spatial map of higher quality but is also more time-consuming and laborious. This is due to the fact that photographs often achieve a higher resolution than videos and can avoid motion blur, thus ensuring the high quality of the images. Additionally, since users can freely control the shooting density, such as densely capturing key areas and sparsely capturing non-key areas, the final spatial map generated is usually smaller in size yet superior in quality compared to that derived from videos.
Option A: Taking 360 Photos
  • Using a tripod ensures that the camera is stable during shooting. The photographer should ideally crouch down or stand slightly away from the camera and use a mobile device for control when taking photos. A photo should be taken at regular intervals, with the moving distance depending on the distance from the camera to the target object. A higher shooting density will be beneficial for mapping, but it will also result in a larger map file.
  • Please do not conduct mapping during rainy or snowy weather.
  • To support localization for all times, mapping should be conducted in every type of weather and at different times of the day, according to local weather conditions. For example, mapping can be done separately in the morning, afternoon (if there are significant differences on shadows), and evening. The same principle applies to different seasons.
Option B: Taking 360 Videos
  • Mount the 360 camera on a stick, extend the stick and hold it vertically above your head (at least one head's height above).
  • Do not tilt it, or put it against your shoulder.
  • Ensure the camera is well above head height; otherwise, if the photographer appears in the image occupying a large part, it may result in a significant amount of noise in the final map, which would affect the localization.
  • During the mapping, the camera must be kept stable. Do not rotate the camera quickly or frequently (as this may lead to image blurring or a jelly effect), it is best to keep the angle constant. Moreover, do not adjust the camera's position during the mapping.
  • Please maintain a uniform and slow speed, and avoid sudden acceleration, deceleration, or any significant motions. Moving too fast can cause image blurring, leading to parts of the map being missing.
  • The mapping process should not be interrupted or paused (for example, you cannot stop to wipe the lens); it must be done in one go.
  • Please do not conduct mapping during rainy or snowy weather.
  • To support localization for all times, mapping should be conducted in every type of weather and at different times of the day, according to local weather conditions. For Example, mapping can be done separately in the morning, afternoon (if there are significant differences on shadows), and evening. The same principle applies to different seasons.

2. Processing The Mapping Data

2A. Processing Data: Photos

2.1. Exporting 360 photos (from the camera)

You may complete this step using the software provided by the camera.

2.2. Importing to Metashape:

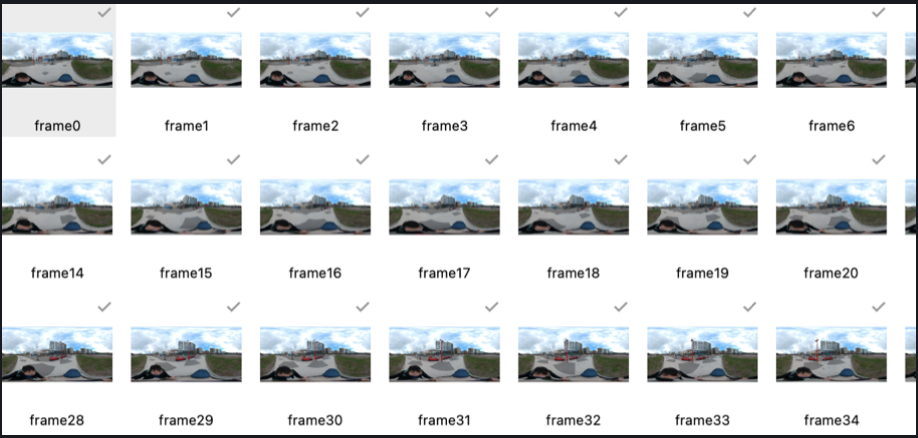

Drag photos to Metashape
Drag photos to Metashape

2.3. Setting the coordinate system:

Default is WGS84 (latitude, longitude, altitude). Recommend switching to "Local coordinates" for 'x/y/z' representation allowing the coordinates to be represented in the 'x/y/z' format.
Setting the coordinate system

2B. Processing Data: Importing From Video

2.1. Export 360 video (from camera)

You may complete this step using the software provided by the camera.

2.2. Converting video for importing to Photogrammetry software (e.g. Metashape)

Export the video as a panoramic flat view, i.e., an equirectangular projection view. In terms of a format, use a format that MetaShape can accept (mov, avi, fav, mp4, wmv), converting the original '.360' format to mov format on MacOS using GoPro Player. During the conversion try to ensure the highest quality (ProRes), if you need to limit the exported video size you can also choose a smaller codec such as H.264.

2.3. Frame Extraction:

Do not use the frame extraction tool built into Metashape (as it may be uneven). You may do it yourself or use the sample frame extraction script we provide. Specify the input (which supports multiple videos), output directory and frame extraction interval (in seconds).

2.4. Export frames to Metashape:

Export frames to Metashape

2.5. Align Photo to generate point-cloud

  • Tools -> Camera Calibration, Set Camera type as Spherical
Camera Calibration
  • Workflow -> Align Photos,select Highest Accuracy and
    Sequential preselection. You can get a point-cloud generated after the alignment is done.
Align Photos Settings
Generated PointCloud

2.6. Generating Mesh and Texture

Our purpose in generating Mesh and Texture are:
  • Having a mesh/texture would make it easy for us to add reference points/markers for fixing the scale.
  • The mesh/texture can be later used in placing AR content to the space in Unity. - Workflow -> Build Mesh - Workflow -> Build Texture
Build Texture
Build Mesh
(Image 2.6)

2.7. Checking the point cloud and mesh

Please check the point cloud and mesh! Look for any obvious errors. For example:
  • Some areas are missing in the point-cloud. (as shown in the left image below)
  • Misalignment, distortion, which do not match the physical space (as shown in the right image below)
(Image 2.7)
In case there are errors as mentioned above, please realign photos again. If it cannot be fixed within the software this usually indicates that the area was not properly mapped (due to various possible reasons such as walking too fast, camera is not being held steady or bad lighting conditions, etc.). If that is the case, then please remap the area.

2.8. Fixing the scale and setting the coordinate system

  • The default scale of the point cloud generated by the photogrammetry software is different from the actual scale of the object. To fix the scale, we need to find some objects with known dimensions as references. We need to add at least 3 points (markers) in the point cloud. More is preferred to minimise the inaccuracy.
  • For example, if we can clearly see the shape of the square tiles on the street surface in the mesh or point cloud, we can mark three of the four corners of the tiles. For each corner, right-click -> Add Marker, then you will see newly added points in the Markers list on the left, with a default position value.
  • We now need to assign the correct position value to each point, so that we can set the orientation while correcting the scale. For example, we may take the first of the three points as the origin of the entire coordinate system (0, 0, 0), and rename it as "origin". Based on the actual scale of the object (tile side length is 2.8 meters), we can calculate the coordinates of the other two points as (0, 0, 2.8) and (2.8, 0, 0), and rename them as "point2" and "point3." Please be aware that you may first need to confirm the coordinate system of the photogrammetry software, e.g. Metashape uses a right-handed coordinate system, unlike Unity's left-handed coordinate system.
  • Check all the checkboxes of the markers, then Model -> Transform Object -> Update Transform.
  • You can switch between point-cloud mode and mesh mode at any time using the buttons at the top to check whether the positions of the points are correct.
(img: 2.8.2)
- When assigning values to the points, first sort them by name (to prevent errors from occurring due to row changes during the editing process).
- It is best if you can find points in all the three axis (x, y and z), like seen in picture B, If it's not possible to find points in the vertical axis you may find several points in the horizontal plane as seen in picture A.

2.9. Optimize camera pose

  • Remove any unnecessary or incorrect points from the area. You can use the selection tool to select the points and then Delete (remove the selected points, retaining the others); or select the desired area, and then Crop (remove points outside the selected area, retaining the selected points).
(img: 2.9.1)
  • Model -> Gradual Selection. Set the following parameters. For each selection, if there are any selected points, go to Edit -> Delete to delete the points, leaving only a very small number of points in the end.
  • Re-projection error: ~2px
  • Reconstruction uncertainty: ~40 - Projection accuracy: ~2-5px
  • Image count: 3
When completed, click Tools -> Optimize Cameras
(img: 2.9.3)

2.10. Export camera poses

Click File -> Export -> Cameras, then camera poses will be saved in XML format. - Save your Metashape project.

3. Uploading converted data and start map construction

3.1. Convert the camera pose data

  • To be able to use the exported camera poses data, we must prepare it for each image. You may write your own script to convert the exported XML to json for each image. For Metashape, we provide a sample script ’’ for that purpose. To run it, you need to specify the path of exported XML file and the path of the images.
(img: 3.1.1)
  • Once this step is completed, there will be a JSON file in the directory containing the photos, associated with each image, that includes its camera pose data.
(img: 3.1.2)

3.2. Splitting 360 photos and camera pose

  • Use Immersal's provided processing script '' to split the panoramic images and poses into regular pinhole images and poses. Before running this script, users need to specify the current directory containing the "photo + camera pose" and the directory for the newly generated "photo + camera pose.” Users can adjust parameters such as the splitting resolution and overlap ratio within the script, although using the default configuration is recommended.
(img: 3.2.1)
  • Users can adjust parameters such as the splitting resolution and overlap ratio within the script, but using the default configuration is recommended.
(img: 3.2.2)
  • After this step is completed, the newly generated "photo + pose data" directory will contain six times the number of photos and pose data files as before. Each photo will no longer be a panoramic image. In the next step, we will need to use this directory for uploading and mapping.
(img: 3.2.3)
  • After completing the above step, you can use Immersal's processing script '' to upload the data to the Immersal server for map construction. Inside the script, you need to specify URL of Immersal server, your Immersal token, the map name, and the image directory. Please note that the map name must consist of letters or numbers (A-Z/a-z/0-9), and must not contain spaces or special characters (such as -, _, /, etc.).
  • Please pay special attention when there are many images, it is recommended to use a wired network for uploading (to prevent interruptions in the middle). If the console output shows “error”: “none” at the end, it indicates a successful upload; otherwise, an error message will be printed.
(img: 3.2.4)

4. Testing the map

You can use the Immersal mapper app and test the location within the space.
(img: 4.0)

5. Adding AR content

We can directly use the mesh/texture generated by Photogrammetry software to develop AR scenes.
  • In Metashape, navigate to File -> Export -> Export Model and File -> Export -> Export Texture to export the model and texture.
  • We can directly use the mesh/texture generated by Photogrammetry software to develop AR scenes.
  • Please note that the default rotation of the model might be (-90, 0, 0), so you might need to reset it to (0, 0, 0).
  • After that, you can start adding AR content. When you make the final build for your app, it's good practice to disable or delete the model.
(img: 5.9)

6. Editing and optimising the map (optional)

Panoramic cameras often capture extraneous objects, including the photographer themselves, trees, and so on. We can remove these unnecessary objects by manually editing the spatial map (point cloud), thereby increasing the success rate of positioning.
  • Download the point cloud file with the suffix '-sparse.ply' from the Immersal developer portal, and open it with 3rd- party software ‘MeshLab’.
  • Within MeshLab, click View -> Toggle Orthographic Camera switch to an orthographic view, which is easier to observe the point cloud.
  • In the point cloud information panel on the right, select None for Shading, to make the point cloud more visible. You may also manually adjust the Point Size for visibility.
(img: 6.0)
